MultiLED R100/R200

The MultiLED R100 and R200 ring light LED for Macro photography.

MULTILED R100/R200

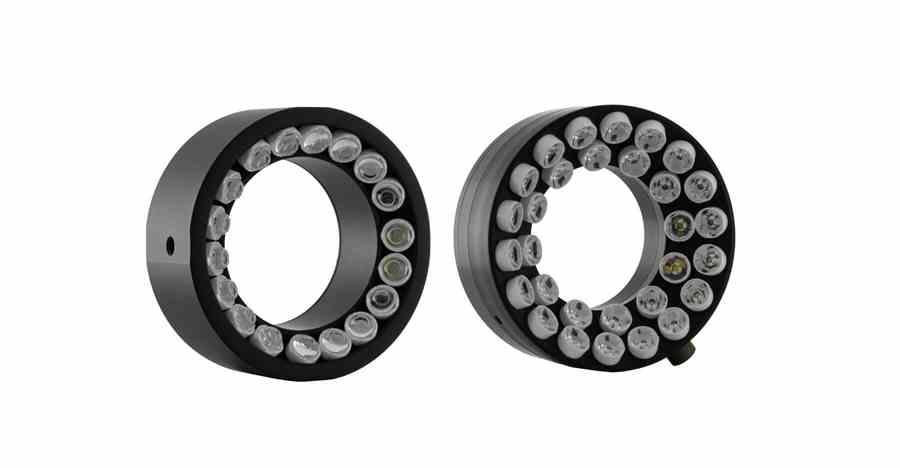

The MultiLED R100 and R200 are small ring light LED for Macro photography.

  • Several million Lux in the focus point. Depending on camera sensitivity, up to aperture 22 at 1 microsecond exposure can be achieved.

  • Colour LED option available for R100

  • LED power is focused 50 mm from the front of the unit to a spot of 40*40mm. Other working distances on request.

  • Inner diameter 78 mm, outer diameter 140 mm, height 70 mm incl. connectors.

  • 2 * standard 1/4“ camera threads on the side for mounting (90° to each other).

  • Passively cooled , 10 % duty cycle continuously or up to 2 minute operation at 100% power.

  • Continuous operation with additional cooling module.

  • BNC, TTL, pulse width controlled up to 30 kHz

  • Lenses: standard full angle 15°.

  • Alternative lenses: 20°, 30°, 50°, 60°, 180°.



Available colours and outputs:

Colour Wavelength Output
80 CRI White Warm white 7,500 lm
Royal Blue 455 nm 25,200 Radiant Flux mw
Blue 475 nm 25,200 Radiant Flux mw
Green 530 nm 5,875 lm
Amber 590 nm 2,800 lm
Red Orange 615 nm 3,550 lm
Red 625 nm 3,550 lm
Photo Red 660 nm 20,160 Radiant Flux mw
Far Red 730 nm 16,375 Radiant Flux mw

MultiLED Lamp Head Index: LX - MX- QX - QX Mini - LT - PT - ZX - L180-XF - L48-XF - CG8 - R100/R200 - G-S8

For further information please contact a member of the team at Photo-Sonics International Ltd.
