MULTILED L180-XF

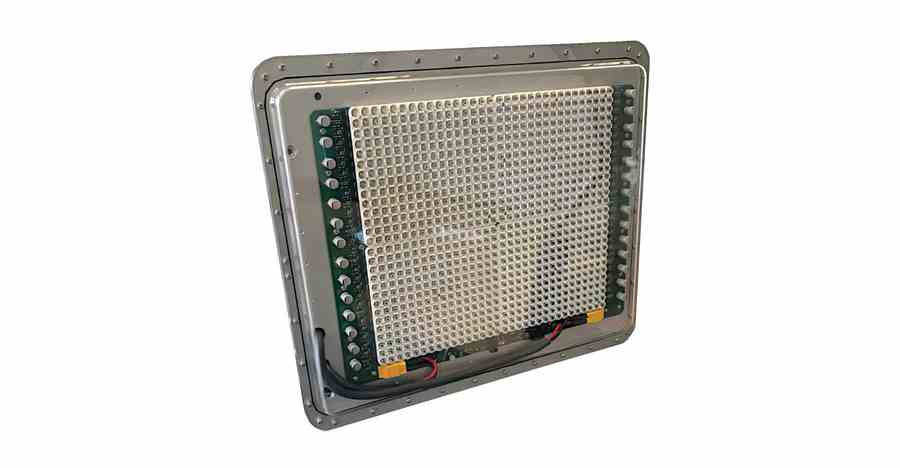

The MultiLED L180-XF is a 1,800,000 lumen LED panel for pulsed operation at low duty cycle only. With 30 kW output, e.g. at 8 kHz and 1 µs exposure time only 240 W are used.

  • Power consumption limit depends on heat dump.

  • Flat design (20 mm, version without heat dump).

  • White or Colour LED.

  • Very homogenous illumination.

  • 15°, 25°, 45°, 75° or 120° FWHM lenses available. Changeable lenses.

  • Pulsed by TTL pulse duration.

  • Power supply 100 W with 5 m cable with 4 Pin Molex connector included.


Options:

  • Longer cables or other cable types on request.

  • IP67 housing optional.

  • High-G housing optional (100G).

  • High temperature housing optional.

  • Vacuum chamber housing optional.



Available colours and outputs:

Colour Wavelength Output in overdrive
Cool White   1,800,000 lm
Royal Blue 450 - 460 nm 3,660,000 Flux(mW)
Blue 465 - 485 nm 240,000 lm
Green 520 - 535 nm 540,000 lm
Amber 560 - 650 nm 455,000 lm
Red - Orange 610 - 620 nm 615,000 lm
Red 620 - 630 nm 438,000 lm
Photo Red 650 - 670 nm 3,000,000 Flux(mW)

MultiLED Lamp Head Index: LX - MX- QX - QX Mini - LT - PT - ZX - L180-XF - L48-XF - CG8 - R100/R200 - G-S8

For further information please contact a member of the team at Photo-Sonics International Ltd.
