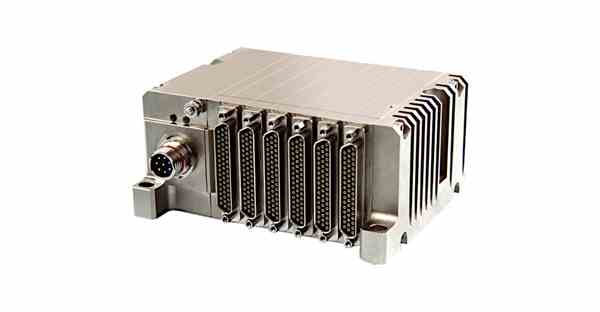

XMA Flight Test Data Acquisition Unit

XMA Flight Test Data Acquisition Unit

Introduction

45 years of experience in flight test instrumentation and telemetry solutions have enabled Safran Data Systems to design and build technology that performs reliably in the most challenging environments and meet evolving needs in the industry. Their equipment is the first choice with customers worldwide.

With its compact and ruggedized design, the XMA series from Safran Data Systems is the ideal fit for remote data acquisition in those harsh and tight spaces found in aircraft. It is the perfect candidate for network telemetry applications and remote acquisitions, reducing the length of intrusive wires by acquiring data closer to the sensors. The XMA also allows data recording, data processing, GPS localization and data transmission. It has the smallest size/channel types ratio, and provides optimized module sets for a large number of data type acquisitions, all with state-of-the-art accuracy. Full status and health information of the unit is remotely available for live monitoring

Multiple XMA units can be networked, and their output recorded using a flight test data recorder such as the MDR, or broadcast using an airborne telemetry transmitter to a ground station.  The XMA OBP provides onboard processing that can be used to reduce the size of data budget, whilst the eZ Software used to configure, process, and decommutate.

Key Features:

- Harsh Environments:

-45°C / +85°C, waterproof, shocks, vibration, lightning, EMI/EMC

- INET Ready:

UDP communication, IEEE1588 synchronization, SNMP

- Ultra Compact & Generic:

Generic analog module, 2x3’’ / 51x76 mm, from 1 to 16 modules per stack

- Easy to Configure:

eZ software suite, XML schema (MDL)

- High Data Rate Accuracy:

0.05% FSR in extreme temperature range

- Multi-format Outputs:

PCM Chapter 4, Chapter 7, Chapter 10, UDP, IENA, DAR

Configuration:

Comprising of either one of two core unit which consists of a power supply and PCU, acquisition modules are added to suit the requirements of the test. See diagram below.

2" x 3" form factor

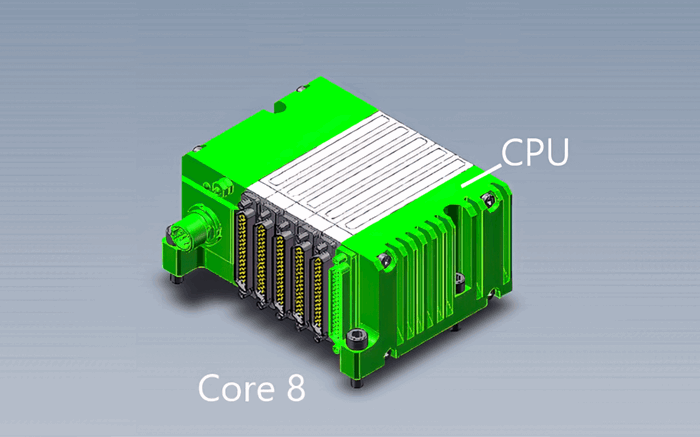

XMA Core8 - Small to medium data acquisition unit

XMA Core8 - Small to medium data acquisition unit

  • 1 Central Processing Unit
  • 1 Power Supply
  • 1 cover plate to enclose the module stack
  • Up to 8 modules

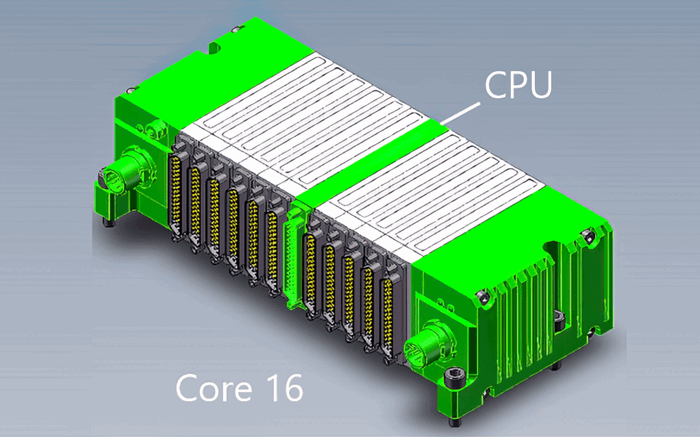

XMA Core16 - Medium to large data acquisition unit

XMA Core16 - Medium to large data acquisition unit

  • 1 Central Processing Unit
  • 2 Power Supplies
  • Up to 16 modules

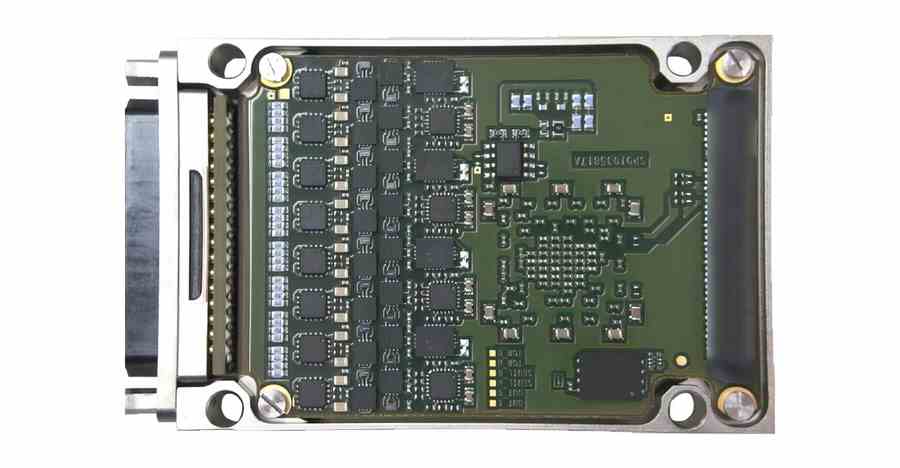

XMA Module

Modules:

A comprehensive range of modules are available for XMA, see list below.  Each XMA modules has a 2" x 3" form factor and incorporate the same form field workable connector for ease of integration in existing flight test networks.

Analogue Acquisition Modules

XMA ABC - 8 Quarter/Half Bridge Channels

• 120Ω, 350Ω and 1000Ω full bridge strain gauges
• 120Ω, 350Ω and 1000Ω full bridge strain gauges
• 350Ω Quater bridge strain gauges
• PT100 temperature sensor

XMA ANA - 8 Universal Analogue Channels

•Analogue signals (differential or single-ended) with or without excitation.
•Thermocouples (type K, J, T, E, N)
•RTD including linearization (PT50, PT100, PT1000)
•Full bridge strain gauges
•IEPE/ICP accelerometers, TEDS IEEE1451.4 compliant

XMA CAA - 4 Piezo-Accelerometer Channels

• Acquisition of high temperature piezoelectric accelerometers in harsh environment (aircraft wings, engines, …).
• Connects directly to piezo accelerometer without external conditioning
• 3 input ranges: ± 100 pC, ± 700 pC, ± 7000 pC

XMA HDA - 16 Single/Diff Analogue Channels

• 16 independent differential or single-ended analogue inputs: Up to ±0.1% FSR accuracy
• Thermocouples (type K, J, T, E, N)
• ±8mV to ±10.24V programmable input range
• DC to 20kHz analogue bandwidth (±10mdB typ.)
• Iso-synchronous sampling across multiple DAUs
• Digital zoom and rescale on each channel
• FIR or IIR or unfiltered per channel
• ESD/Lightning protected

XMA HDH - 16 High Voltage Analogue Channels

• 16 independent differential or single-ended analogue inputs: Up to ±0.05% FSR accuracy
• ±32mV to ±40.96V programmable input range
• DC to 20kHz analogue bandwidth (±25mdB typ.)
• Iso-synchronous sampling across multiple DAUs
• Digital zoom and rescale on each channel
• Up to 3 parallel filtering for each of the 8 channels: Unfiltered, IIR, FIR
• ESD/Lightning protected

XMA SCN - 2 Scanner Channels

• Pressure scanner
• Voltage scanner
• Temperature scanner
• Two differential analogue inputs
• Two 7-bits address lines for external multiplexers channel selection: TTL or CMOS5V; CMOS12V
• ±1024mV / ±2048mV / ±5.12V / 10.24V ranges better than ±0.25% FSR accuracy
• Compatible with ESP 16-HD/32HD/64HD (Conventional or DTC):

XMA THC - 8 Thermocouple Channels

• Acquire wide ranges of temperatures with good accuracy
• Thermocouple K, J, T, E and N (other on request)
• Accuracy better than ±2°C for type K
• Restitution up to 128 samples per second
• Digital IIRB8 filtering
• ESD/Lightning protected
• Cold Junction Temperature status available

XMA VDA - 2 Analogue Video & Audio Channels

• Two independent Analogue video signals
    ◦ Analogue SDTV video formats
    ◦ (NTSC 525i (RS-170 & RS- 170A))
    ◦ S-Video, Y/C or CVBS
    ◦ NTSC or PAL
• Two independent Audio signals

XMA VDT - 4 x LVDT/RVDT Channels

• Support excitation sensing and secondary coil sensing (aka. 2-wire or 4-wire configuration)
• Support secondary coil sensing with middle point (aka. 3-wire or 5-wire configuration)
• ±8mV to ±10.24V programmable input range
• From 300Hz to 5kHz carrier frequency (Contact ZDS for specific need)
• Output displacement parameter in percentage: ±100%
• Up to ±0.25% FSR accuracy
• Up to 100Hz core displacement

Digital Acquisition Modules

XMA AFX - AFDX ARINC664-7 Acquisition Module

• AFDX frame acquisition with parsing features
• Two single or one dual redundant 10/100BASE-TX input ports for AFDX acquisition
• Error detection (MAC, AFDX, IP, UDP layers)
• Filtering based on Virtual Links (VLs), AFDX Ports
• Up to 256 VLs per input port
• Up to 1024 AFDX Ports per input port
• Airbus flavour of AFDX. Other format on request

XMA ARC - 16 ARINC 429 Channels

• ARINC-429 frame acquisition with parsing features
• 16 differential ARINC-429 input channels
• Up to ±30V differential input range
• Differential input impedance > 30kΩ
• High/Low bus speed independently configurable per input channel or automatic bus speed detection
• 1024 programmable filters per input channel
• Internal time stamping with a 1μs resolution
• Lightning protection (DO-160G)

XMA CAN - 4 CAN Channels

• Four Controller Area Network (CAN) acquisition channels
• Bus Frame Identifier: CAN 2.0A, CAN 2.0B (11 or 29 bits)
• Maximum bus bitrate: 1Mbps / channel (Bitrate selectable on each channel)
• Differential input impedance > 30kΩ
• High/Low bus speed independently configurable per input channel or automatic bus speed detection
• Message counters / Error counters available
• 1μs Rx Frame time-stamp resolution
• Lightning protection (DO-160G)

XMA DAB - 16 Discrete Monopolar Inputs

• Synchronous Event Sampling
• Asynchronous Event Detection
• Frequency, Counter, (asynchronous or synchronous) Period Measurement, Duty Cycle Measurement
• 16 monopolar inputs
• Up to 50V analogue input range
• 2 independent programmable thresholds per input (hysteresis skill, 16-bits DAC)
• Differential input impedance > 200 kΩ

XMA IPX - 2 Ethernet Acquisition Channels

• Network telemetry traffic spying
• Data acquisition from sensors with Ethernet UDP output
• Data acquisition from TCP communications between two hosts
• Two independent 10Base-T / 100 Base-TX 802.3 Ethernet input ports
• Two independent acquisition, filtering and extraction flows
• Simultaneous protocol handling per input port
• Support of Unicast / Multicast / Broadcast addressing at Network layers (IPV4)

XMA MIL - 4 MIL-STD-1553 Channels

• 4 independent (or 2 redundant) MIL-STD-1553B bus monitoring with native 1553 electrical level or 2 independent (or 1 redundant) MIL-STD-1553B bus monitoring with RS422 electrical level.
• Short (direct coupling) or long (transformer coupling) stub.
• Parsing on all 1553 message types.
• Message time stamping on parity bit of the first word of the message (with 1μs resolution).
• Lightning protection (DO-160G).

XMA MRC - 4 MIL-STD1553 / RS-X / CAN Channels

• One single module for three types of digital bus acquisitions (exclusive per firmware)
• Up to 4 x MIL-STD-1553 acquisitions
• Up to 4 x RS422/485 acquisitions
• Up to 4 independent CAN buses (native CAN or RS-CAN)

XMA RSD - 4 x RS 232/ 422 / 485, 16 Differential or Unipolar Discrete Channels

• Synchronous Event Sampling
• Asynchronous Event Detection
• Frequency, Counter, (asynchronous or synchronous) Period Measurement, Duty Cycle Measurement
• Pulse Totalizer Counter Measurement (non-volatile and resettable): PTC
• Additional Frequency to Digital Converter Measurement: FDC2
• Point to point or network RS422/485 frames acquisition with filtering features

XMA RSX - 4 x RS-232/422/485 Channels

• Up to 4 RS422/485 asynchronous channels
• Up to 2 RS422/485 synchronous channels (Data + Clock)
• Up to 4 RS232 asynchronous channels
• Up to 2 RS422 PCM synchronous channels (Data+Clock), up to 20Mbps
• NRZ (L,M,S), RNRZ-L (scrambled NRZ-L), Bi-L,M,S
• Customization of RS processing available on demand

Other Modules

XMA DMY - Dummy Module

• This module is dedicated to be used as a spacer to replace any other module in order to keep constant the DAU mechanical form factor.

XMA ETH - Ethernet Module

• Network telemetry
• Remote monitoring, configuration and control of the DAU when direct USB connection not applicable
• PTP synchronization
• High performance, low latency IRIG106 Chapter 10 UDP streaming
• High performance, low latency IENA streaming

XMA GPS - GNSS Receiver

• 2 trajectory tracking modes:
    ◦ GNSS L1-C/A acquisition
    ◦ External NMEA frames acquisition
• 2 simultaneous modes for PVT output:
    ◦ NMEA frames
    ◦ Decoded parameters
• Absolute dating and DAU system synchronization

XMA NEX - Network Extender Module

• Telemetry data streams’ aggregation to network root
• Time & synchronization propagation across network
• Monitoring, Configuration and Control protocol propagation across network
• 5 Ethernet 10/100Mbps downlink ports (source port)
• 1 Ethernet 10/100Mbps uplink port (aggregation port)

XMA OBP - On-board Processing Module

• User defined digital processing
• Maximize customization capabilities of your FTI: Using any synchronous and asynchronous measurements across the system as input operands
• Generate computation results as new measurements available in the whole FTI system (TM, recording, display,...).
• Optimize TM bandwidth with smart on-board data reduction

XMA WLS - Wireless Link Module Transmitter

• Wireless link between XMA DAUs for, data transmission, synchronization and configuration.
• Instrumentation of moving parts of a test vehicle like the rotor of an helicopter rotors and the horizontal stabilizer of an airplane, or remote areas like engines, landing gears, etc…

XMA RCD - Recording Module with Removable Media

• Up to 40 Mbps data recording through put either on internal 32 Gb SD memory or removable μ-SD card via external dongle.
• Auto-start recording on power up.
• Record in native format or IRIG 106 Ch. 10.
