Introduction:

The MDR-GT is an ultra-Fast on-board FTI data recorder designed around a common mainframe and flexible chassis. This common mainframe contains built-in processing functions and high-end interfaces as standard. No extra hardware is required for UDP streaming, telemetry broadcasting, and advanced networking; the latter allowing for the communication of multiple XMA stacks to form a distributed data acquisition system.

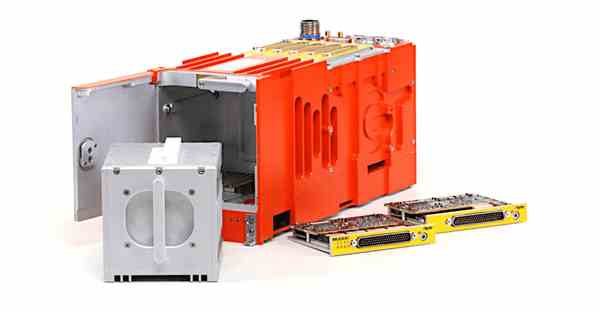

The flexible chassis is available in a top and front loading format in which two canisters can be installed. A canister can accept up to five signal modules, and is backward compatible with most signal modules of the MDR including Analogue Input ModulesDigital Input & Bus Interface ModulesVideo Input ModulesHybrid Interface Modules, and Storage Modules. Canisters can also be loaded with storage modules of up to 40TB.

Key Features:

Ultra High Data Rate &Storage:

Up to 16 Gbit/s and up to 80 TB

Advanced Data Capabilities:

On-Board Data Analysis

Configuration Flexibility:

User-Configurable Canister Concept

Full Spectrum of Interfaces:

10GigE, Video, Fibre Channel, ARINC 429, PCM, MIL-STD-1553 ...

Integrated Telemetry Outputs:

H.265 Video, Analog... 2 x IRIG 106-17 Chapter 7 PCM Support

Configurations:

See example configurations below.

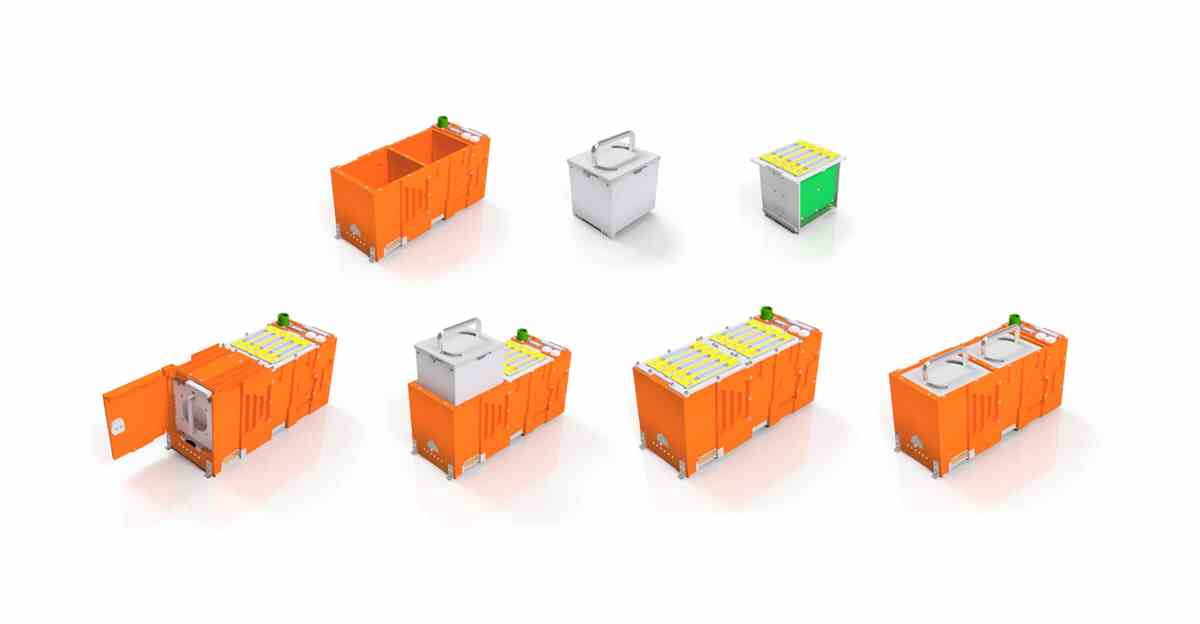

The top row shows, from left to right, an empty mainframe, 40TB storage canister, and data acquisition canister.

The bottom row shows various configurations.

MDR-GT Flight Test Data Recorder Configurations
