MultiLED G9

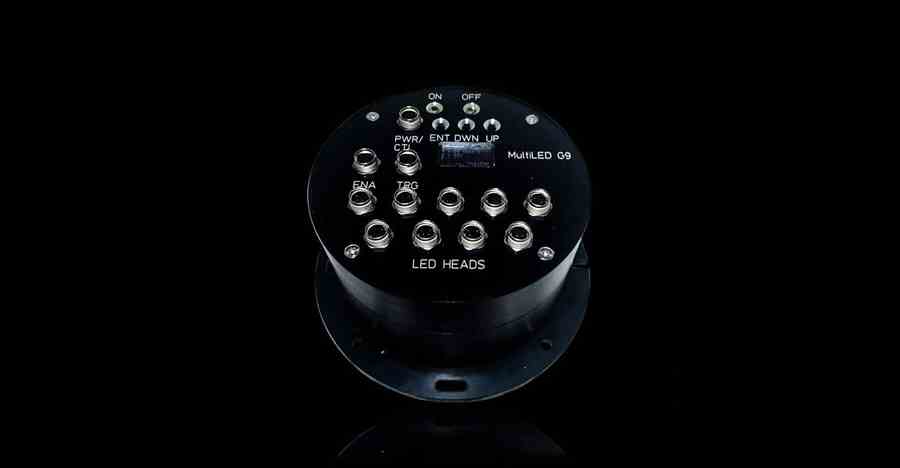

![MultiLED G9 Controller for High G LED lighting applications.](/media/ebfh5i3a/gsvt_g9_controller_1800x936.jpg?anchor=center&mode=crop&width=900&height=468&format=auto&quality=30&rnd=133320030467670000)
![](/media/ixyltset/spacer-03-transparent.jpg)
MULTILED G9 Controller and A1 LED Heads
![](/media/vm5nsm3n/yellow1.jpg)
The MultiLED G9 is a High-G LED solution consisting of a controller and up to nine A1 LED lamps.
-
G9 battery pack attached to G9 control unit (changeable).
-
Charging input in G9.
-
Strobe via trigger signal (TTL) down to 1 μs rise time and 2 μs fall time (invertable).
-
Enable input BNC TTL to override trigger in.
-
30 seconds of continuous operation with 9 lamp heads at 100% power. Or more when pulsed.
-
OLED display control and monitoring.
-
12,000 lm continuous output per head. Overdrive mode (pulsed) 16,000 lm.
-
100G.

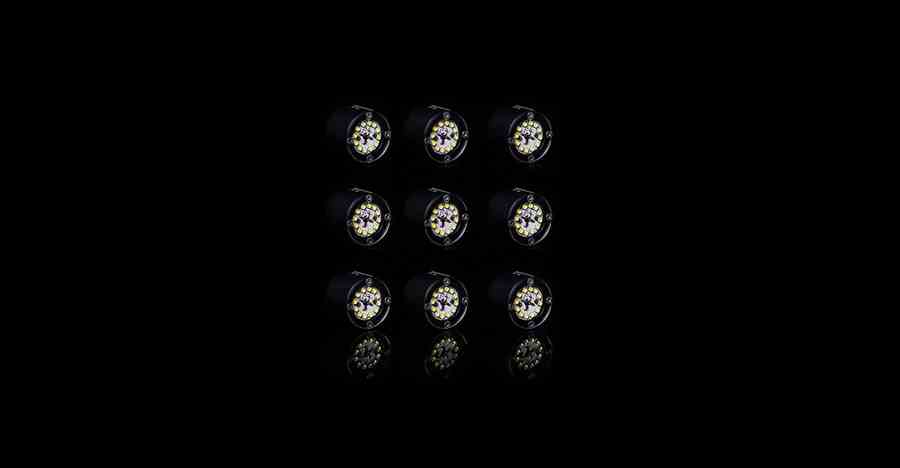

![A1 High G LED Lights for high speed photography](/media/egmf2mo0/gsvt_multiled_a1_1800x936.jpg?anchor=center&mode=crop&width=900&height=468&format=auto&quality=30&rnd=133320030087830000)
For further information please contact a member of the team at Photo-Sonics International Ltd.
